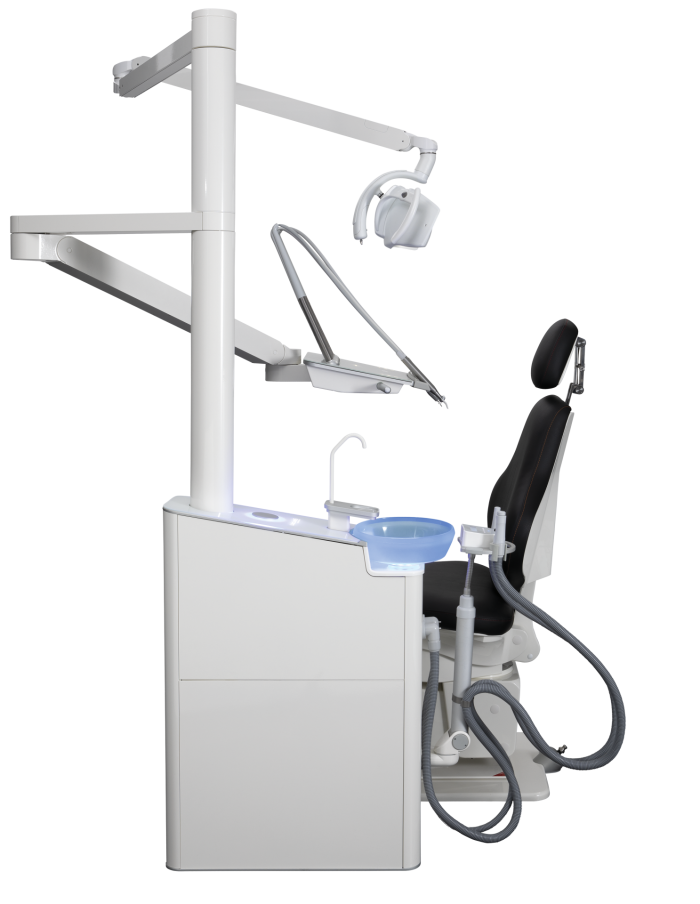

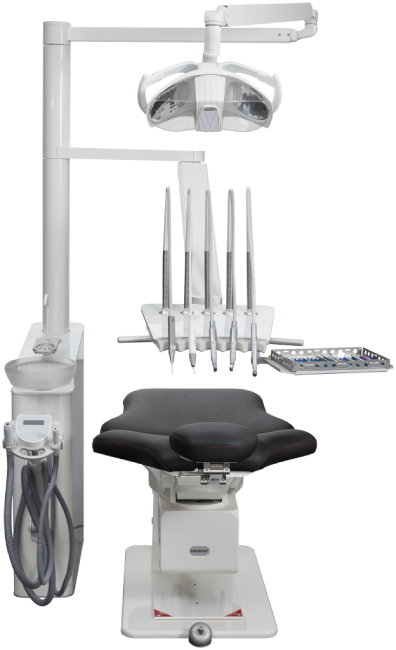

UnicLine S
A functionally beautiful and simple Nordic design
UnicLine S is the first treatment unit born with integrated LED touch displays in the elegant, hygienic surface of tempered glass. The solid construction in aluminum and the beautiful, simple, Nordic design create a comfortable and relaxed environment for patient and dentist. The light has also played a major role in the work with UnicLine S – for example, the dentist and assistant can see the settings for the active instrument in the corner of the eye and can thereby maintain focus in the patient’s mouth, without moving their eyes.
We call this light ergonomics, sitting with the right light.
Today, more emphasis is placed on ergonomics, durability and design.
We experience a much higher focus on interior design, wellness and emotions.
Visually, the console is very clean in its expression, with a simple, clean form that is supported in its expression by the glass surface mounted on an anodized aluminum plate.
UnicLine S is the first treatment unit that can adapt to the environment, because you can program the colors to match the design in the clinic.
UnicLine S - Quintessentially Simple

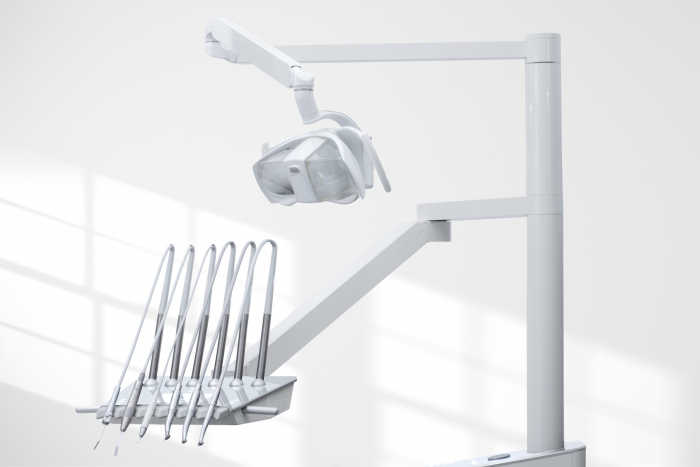

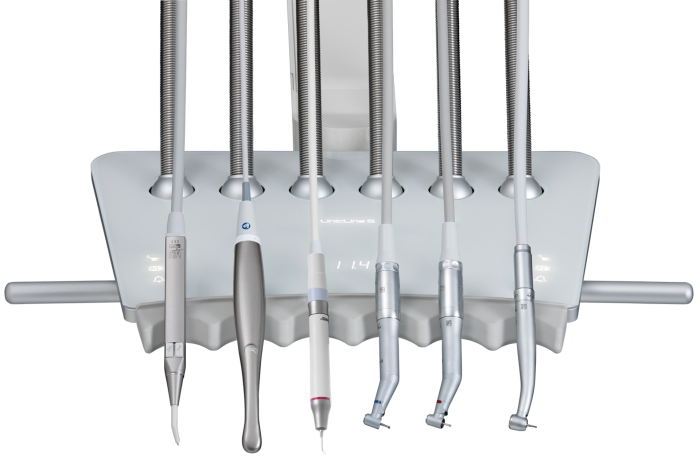

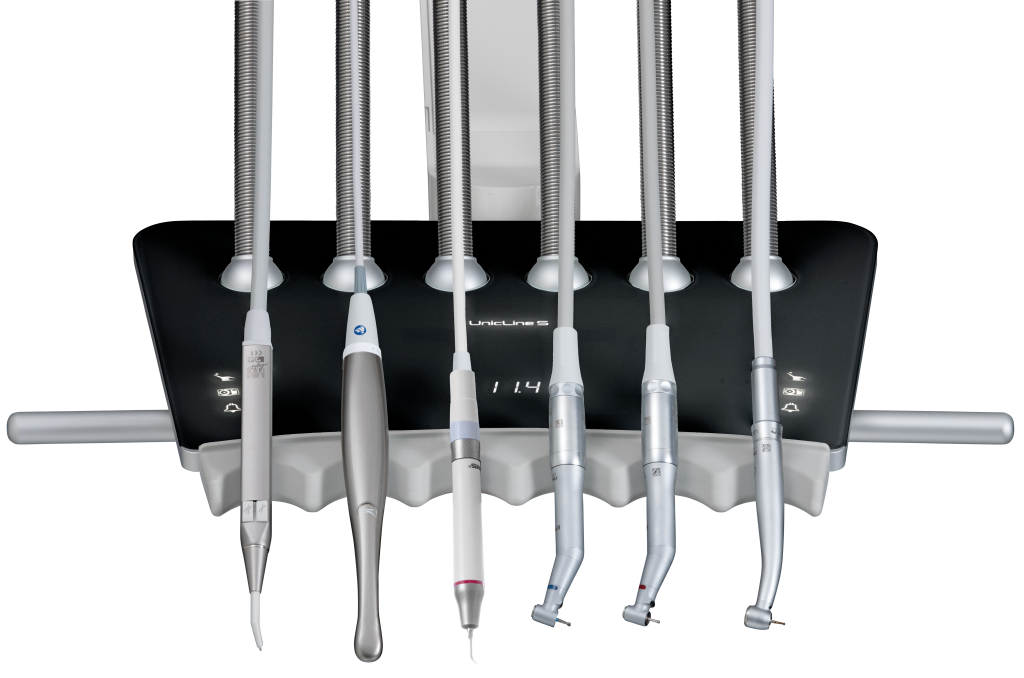

The delivery tray is naturally the dentist’s primary work instrument.
The sleek and narrow design of the delivery tray is a prerequisite for achieving optimum ergonomic working positions around the patient without unnecessary lifting of the elbow and shoulders.
The delivery tray for UnicLine S is available in two versions – one for five instruments and one for six instruments.
UnicLine S - Quintessentially Simple
Naturally, the dashboard is the dentist’s primary working instrument.
The thin, narrow design of the instrument table is a prerequisite for achieving optimal ergonomic working settings around the patient without unnecessary lifting of elbows and shoulders.
You can get the dashboard for UnicLine S in two versions – one for 5 instruments and one for 6 instruments.
We all know the familiar situation where we want to keep our eyes on the patient’s mouth, but often we are forced to look away to check instrument settings during treatment – such as simple information about instrument spray.

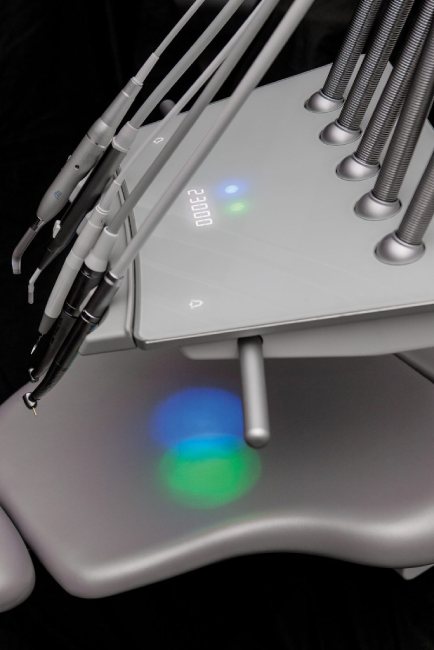

Lighting ergonomics work by two LEDs projecting the spray combination on the patient’s napkin/torso.
The idea is that the dentist uses his peripheral vision to capture the colours on the napkin to validate whether the spray combination is set as desired.
In this manner you avoid having to turn the head and can maintain focus in the mouth of the patient.
A dentist using lighting ergonomics on UnicLine S can reduce movements of the neck and strains of the eyes significantly.
UnicLine S Black Edition with black glass surfaces.

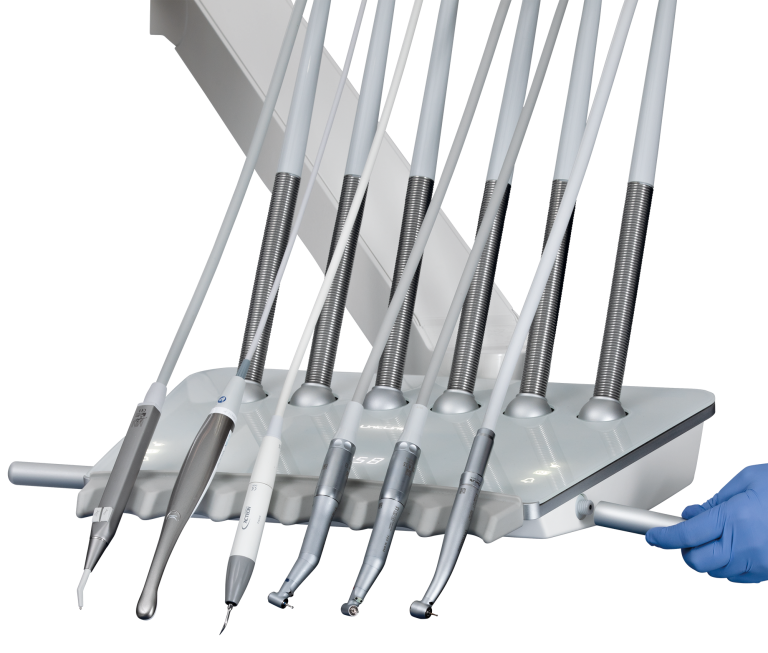

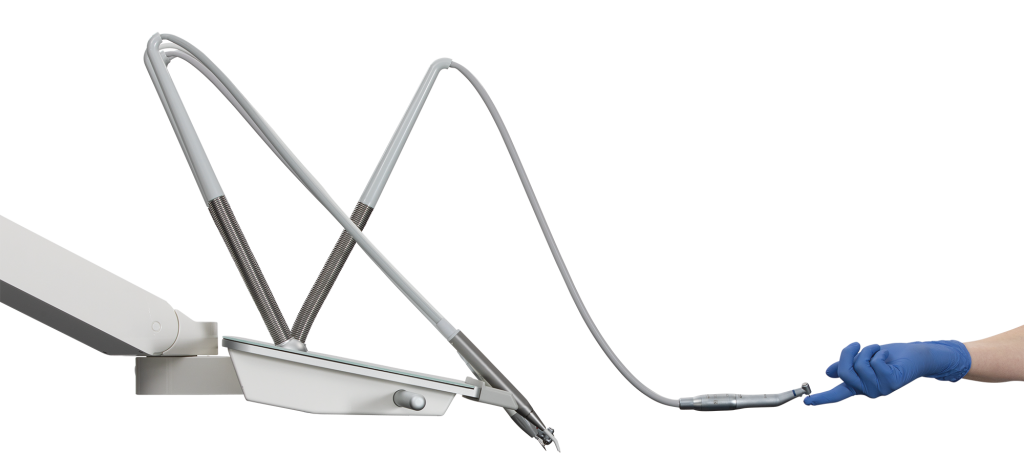

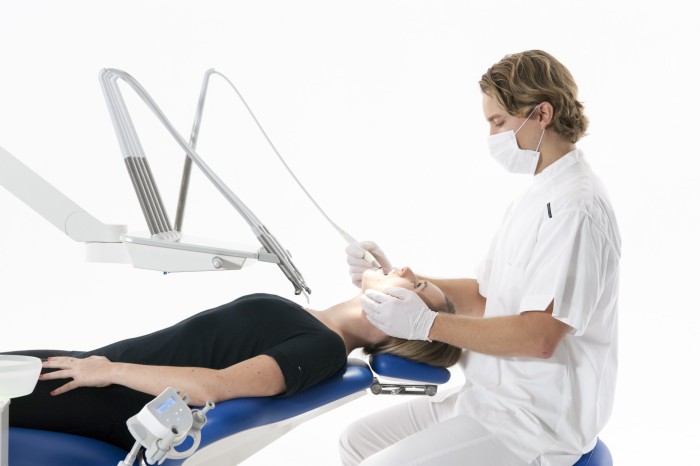

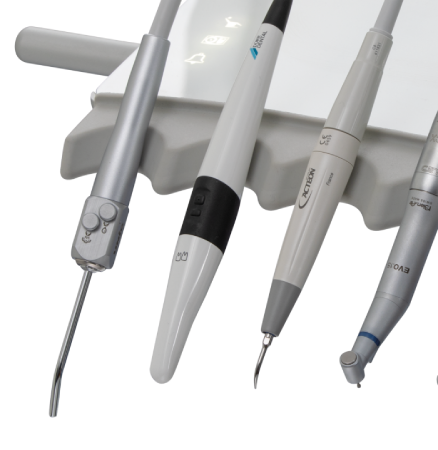

Balanced Instruments

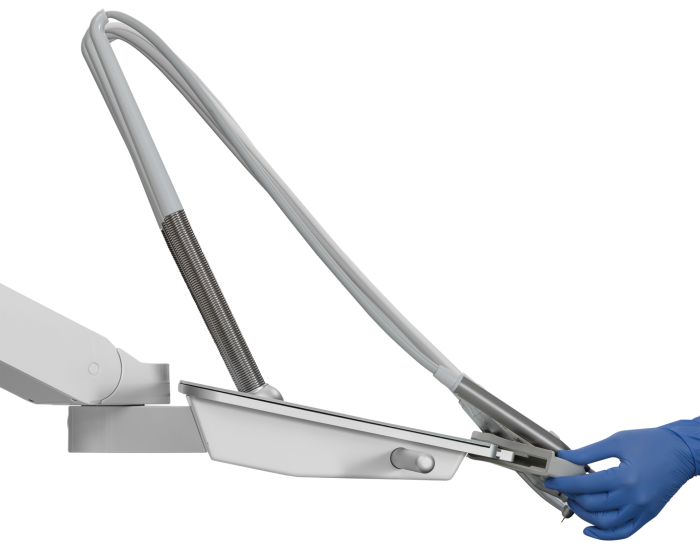

with the balanced suspension, the instruments are individually balanced and the long silicone hoses provide ergonomically correct working possibilities. The instruments are individually balanced so that your hand does not have to carry the instrument’s weight or experience external forces when performing your precision work.
Balanced unit instruments reduce fatigue and increase the precision of the work.
A perfect work light
A perfect working light is one of the prerequisites for giving the patient the benefit of your professional knowledge regarding their treatment. The UnicLine S comes with a specially designed LED operation light, which provides a perfect mix of light intensity, colour temperature and the size of the light field.
The light head is fitted with two mirrors that ensure a shadow-free working area. The light arm has a length that makes it easy to light up from behind the patient’s head and illuminate the lower jaw.
The operation lamp is available in different types depending on your needs and can also be supplied ceiling mounted, making the UnicLine S a very light clutter- free design. If you have a lamp that you prefer, it is of course possible to install it on your new UnicLine S.
The unique patented round foot control can be activated from all directions with either right or left foot releasing you from any fixed working posture. The foot control regulates the speed and the intensity of the chosen instrument.
UnicLine S gives you a choice of three different foot controls – the round, the round variable, and the Universal foot control.
The round foot control can be used from all angles so dentists can always work in an ergonomically correct working position.
All foot controls are available in wireless versions.
Suction

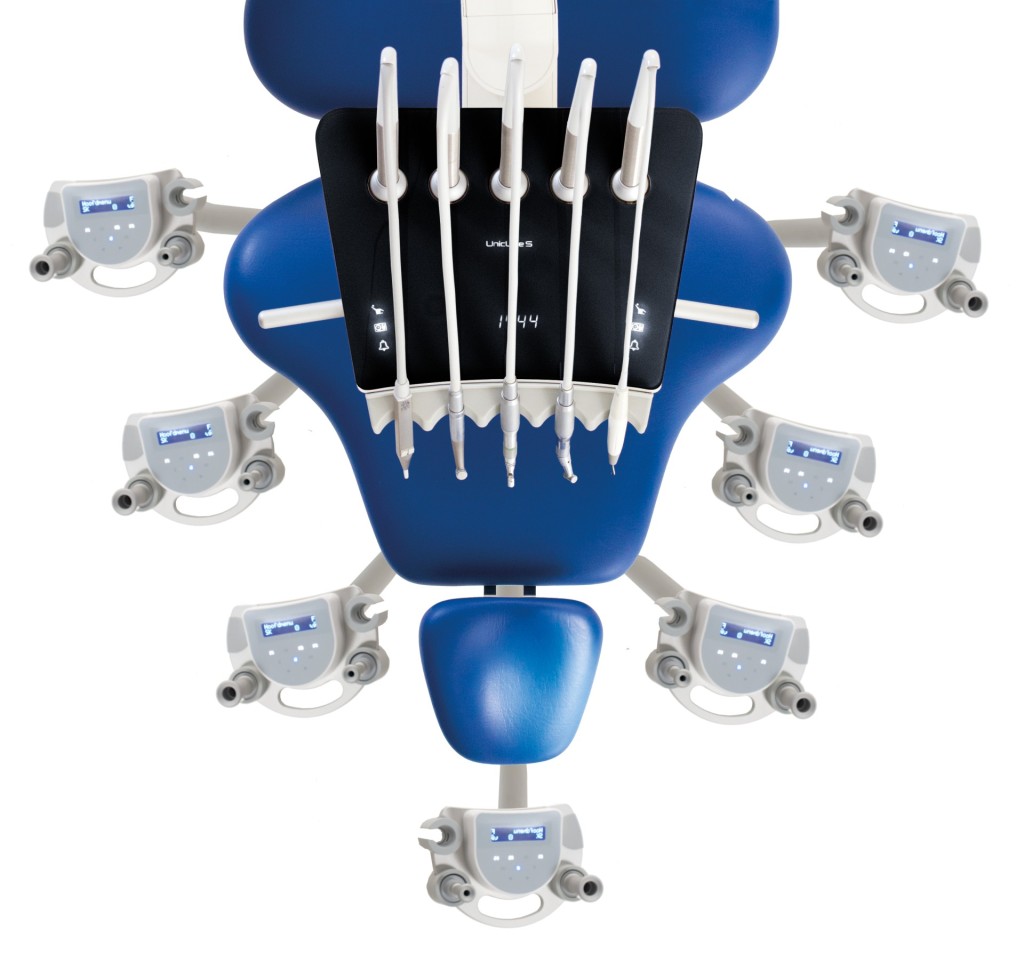

The telescopic arm with the suction can easily be adjusted to work 180 degrees around the patient to avoid twisting the upper body when reaching for the suction.
The telescopic arm can be adjusted from two to four-handed treatment or from right- to left-handed dentist in seconds.

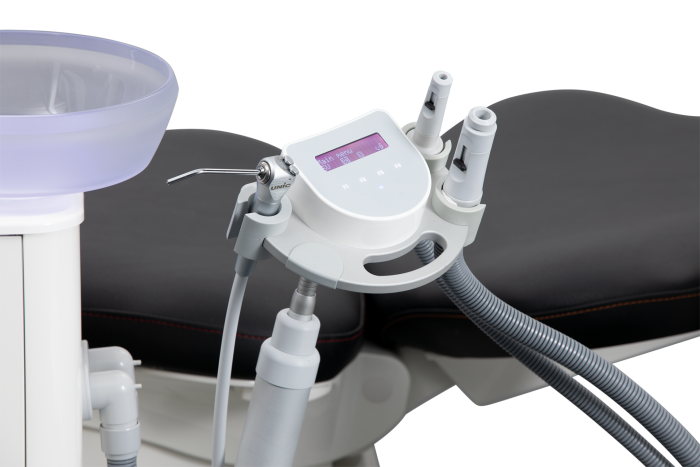

The suction comes as standard with two selective suctions and adjustable hand pieces or with hygienic, autoclavable aluminium hand pieces for surgery.
The holder is available in an open or closed version.
The telescopic arm is mounted on the chair base, under the patient.
UnicLine S is also available with automatic suction system cleaning. The system is activated with a single press of a button, and shortly thereafter, you are ready for a new patient. During treatment the suction hose system can be flushed with clean water.

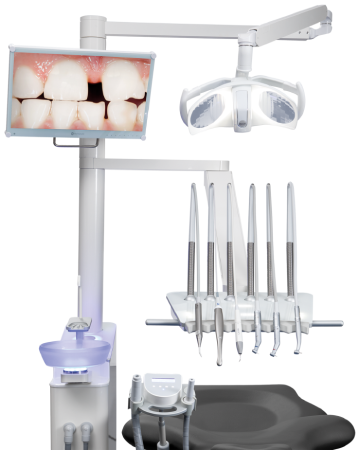

Multimedia
UnicLine S is available with different models of intraoral cameras, which can be connected to the clinic’s desktop, and the image can be shown on a 22” unit mounted monitor.

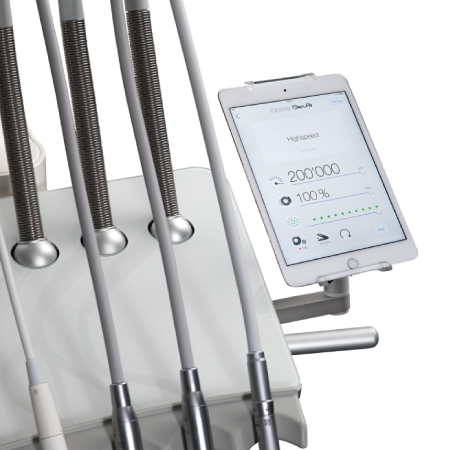

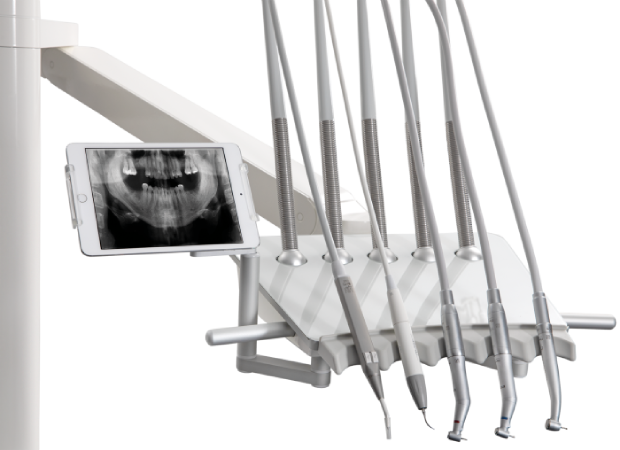

As an alternative, it is also possible to mount an iPad/tablet holder on the delivery tray.
Benie
Bentrolenstri
Consultant
•Vivamus in diam turpis. In condimentum maximus tristique. Maecenas non laoreet odio. Fusce lobortis porttitor purus, vel vestibulum
Ketie
Alredo
Consultant
•Integer adipiscing. Nam ut nulla ipsum wisi, aliquam ut, lectus. Mauris auctor velit. In congue sit amet sapien auctor mi eros iaculis hendrerit
Don
Clarksen
Consultant
•Cras eu nibh. Curabitur volutpat quam congue non, placerat semper, nisl eros, id erat volutpat. Pellentesque nunc sit amet, iaculis mi tempor ipsum

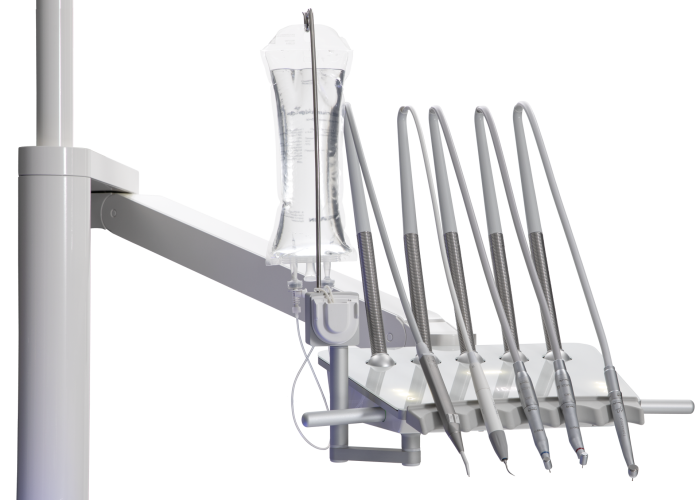

Sterile water plant
Sterile water system can be installed on the delivery tray. This allows for the supply of sterile water for e.g., surgical procedures or endodontics.
Console-mounted X-ray
X-ray can be installed directly on the UnicLine S console with an additional x-ray support, positioned in front of the OP-lamp and instrument support. The universal X-ray support fits most X-rays, and it is therefore possible to transfer X-rays from older dental treatment centers when you upgrade to UnicLine S.
Sterile water plant
Sterile water system can be mounted in the tray adapter. This allows for the supply of sterile water to e.g. surgical interventions or endodontics.

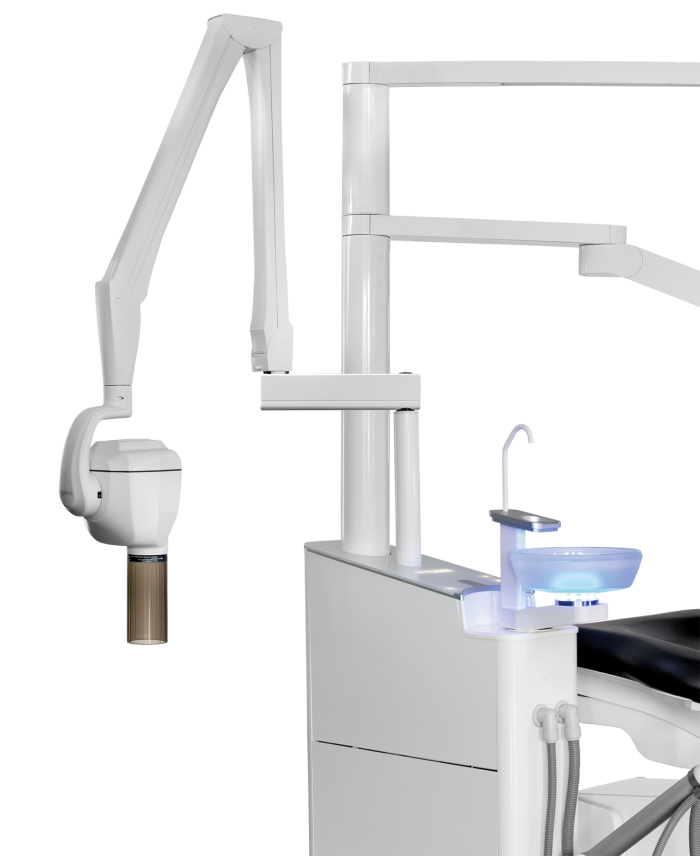

Unit mounted X-ray
The X-ray can be mounted directly on the UnicLine S console using an additional X-ray adapter that is mounted in front of the lamp tube in the upper part of the console. The universal adapter fits all common X-ray models, and it is thus possible to transfer X-rays from an older unit when you
upgrade to UnicLine S.
Trays and tray adapters
UnicLine S provides the possibility to mount two tray holders on the delivery tray. The tray holders are available in several heights and lengths.
Both single- and double trays are available and silicone protection sheets for the trays are also available.
It is possible to mount e.g., a single tray on the left of the delivery tray and a double tray on the right, to achieve optimum tray space for both dentist and assistant.

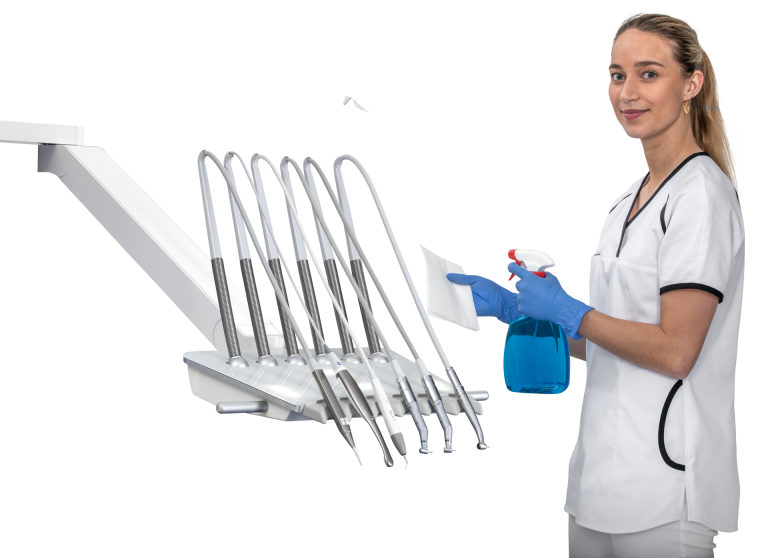

UnicLine S - with the most hygienic surface-wpml
The display and touch keys are located under the glass of the delivery tray and console and are only visible when relevant for the situational function – this creates a streamlined look, and we avoid straining the eyes.
With a surface of hardened glass, we have created the most hygienic surface on a dental treatment center and to make cleaning easier the display/touch keys can be deactivated.
The integration of displays also means that less surface area needs to be cleaned between patients.
Natural contact points
Natural contact points, such as handles and instrument covers, can easily be removed for cleaning and autoclaving.
This also includes the handles for the operating lamp.
The UnicLine S can be supplied with automatic instrument water flushing. This ensures that the water system, tubes, and instruments are flushed through and ready for the next patient – quickly and easily.

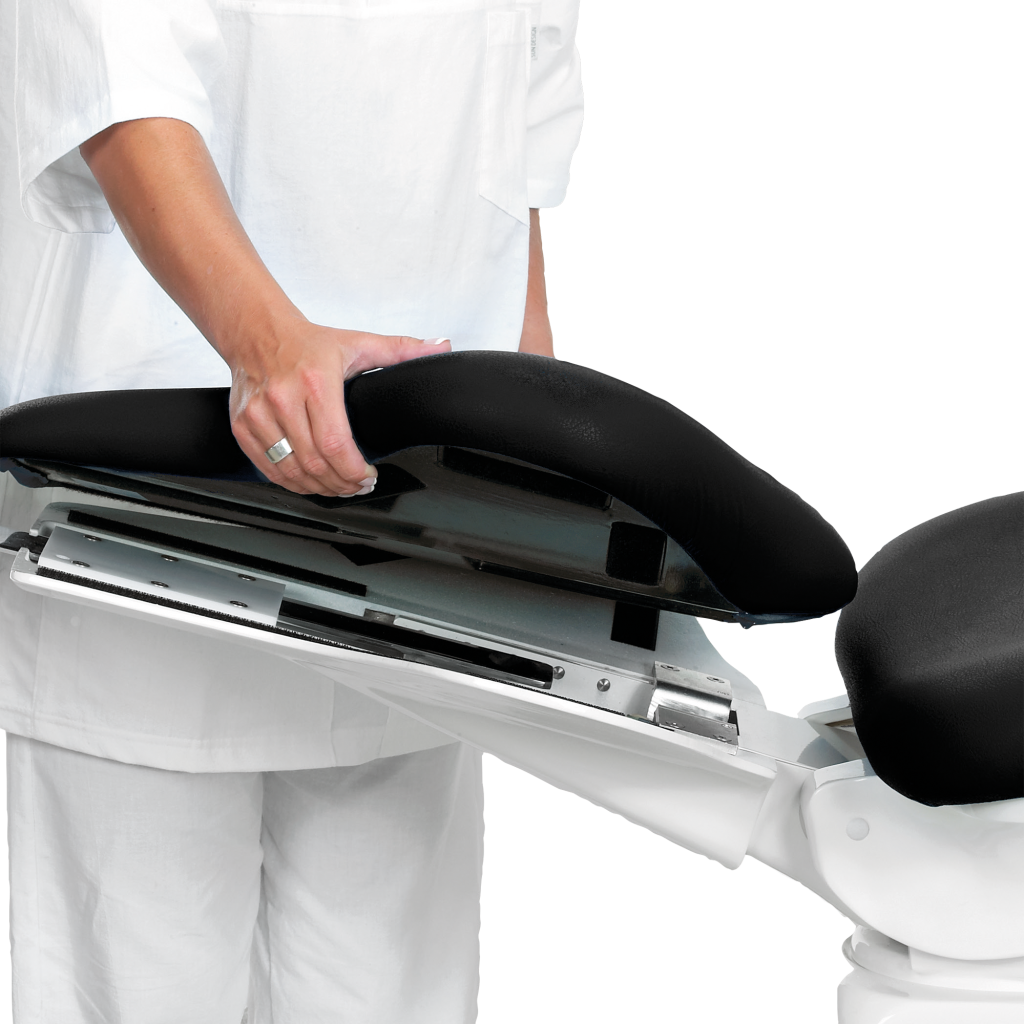

Easy to clean. The UnicLine S upholstery is easy to remove for cleaning.

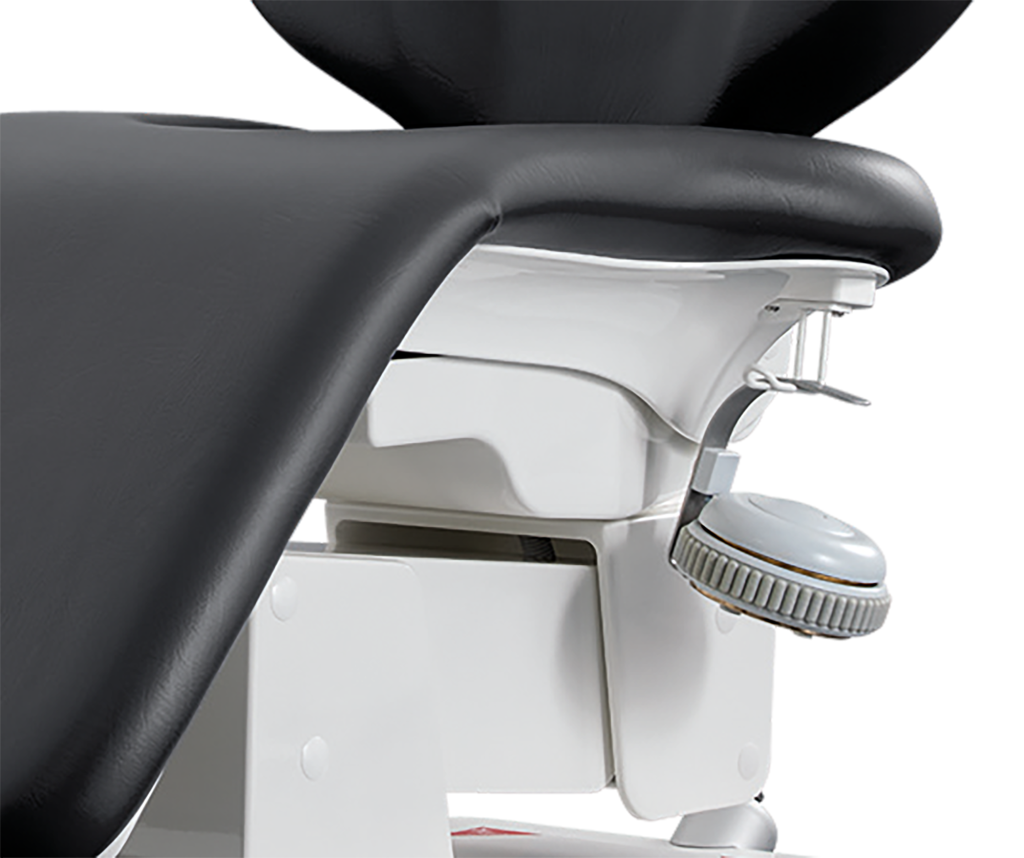

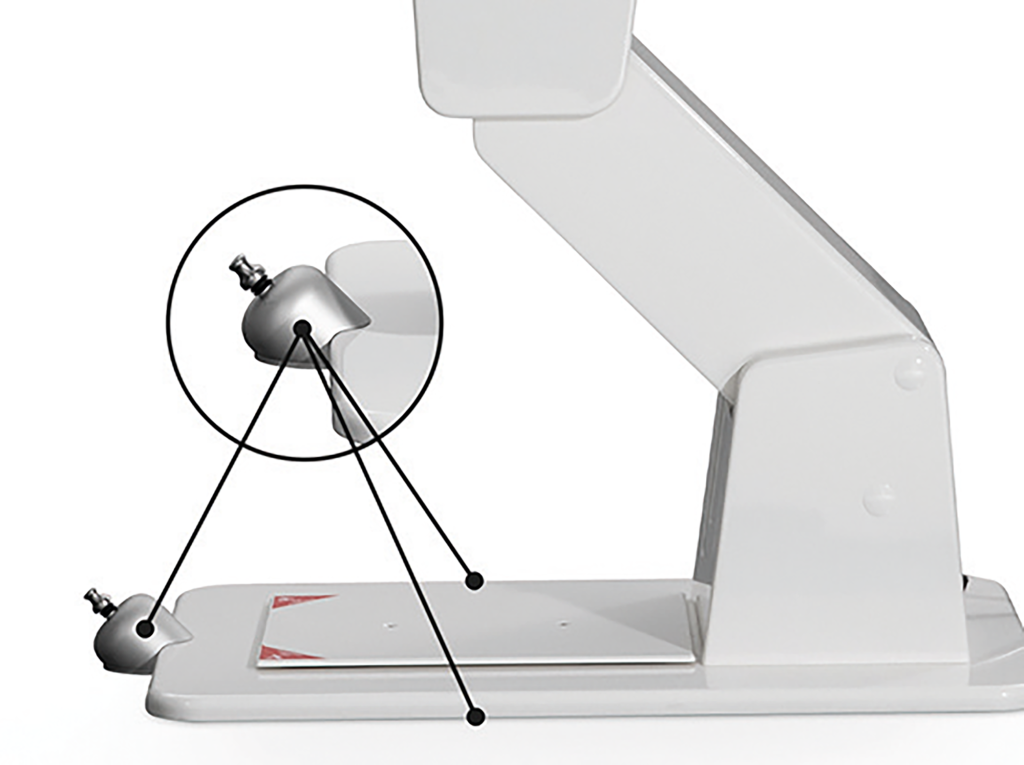

Hanger for the foot control keeps the floor area free during cleaning.
A relaxed patient means ideal working conditions for the dentist.
For this reason, we have created a treatment chair that is comfortable for both the patient and dentist.
The dentist has the ideal working conditions, regard- less of whether he works standing or sitting. The thin and narrow back provides the optimum opportunity to get close to the patient during treatment. The feel of the patient’s chair, and the choice of materials and colours complement UnicLine S’s clear, clean lines and simple design. At the same time, we have remained focused on the functionality of the chair and in particular, it is easy to adjust the chair by means of a foot operated joystick or the electronic control panel on the delivery tray.

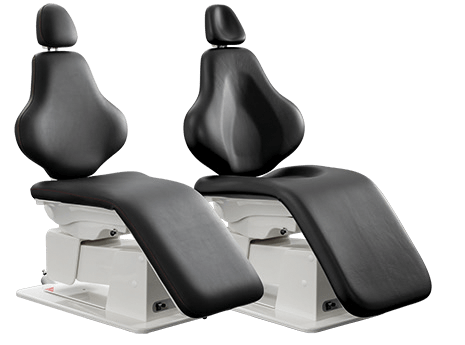

Comfort Shape and Comfort Memory upholsteries
The patient’s chair is supplied with Comfort Shape upholstery (view image on right) as standard. The upholstery has a carved bowl shape in the seat and back rest, to allow the patient a more comfortable and stable seating.
In addition, we also offer Comfort Memory, a premium upholstery, with memory foam, which feels very soft in comparison with regular upholsteries.
The backrest is narrow at the top, so that both the dentist and assistant can get close to the patient’s head and sit ergonomically correct. In addition, the backrest is thin so there is plenty of space for the legs.

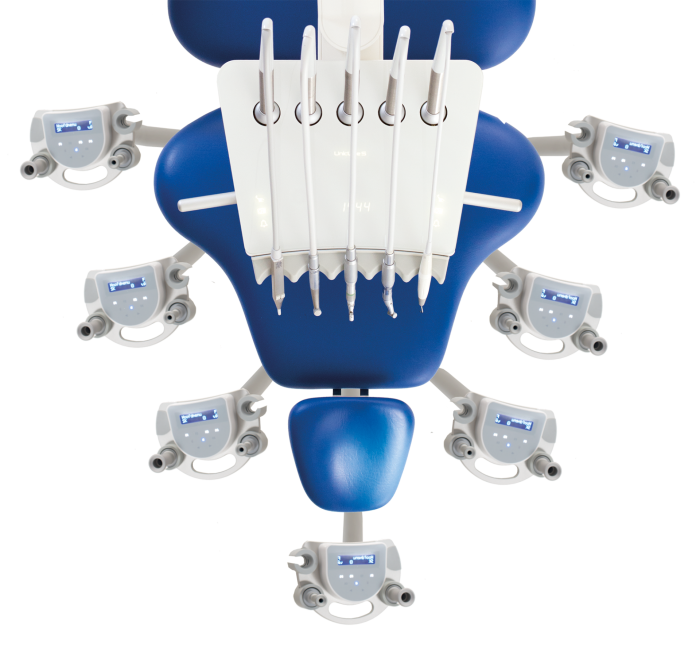

The assistant unit is placed on a flexible telescopic arm, which ensures the best position with both 2- and 4-handed treatments. At the same time, switching between right-left dental treatment takes just a few seconds without the use of tools by placing the telescopic arm on the patient’s chair. This gives you great flexibility in choosing a treatment room during a busy working day. *
*Depending on the treatment center.

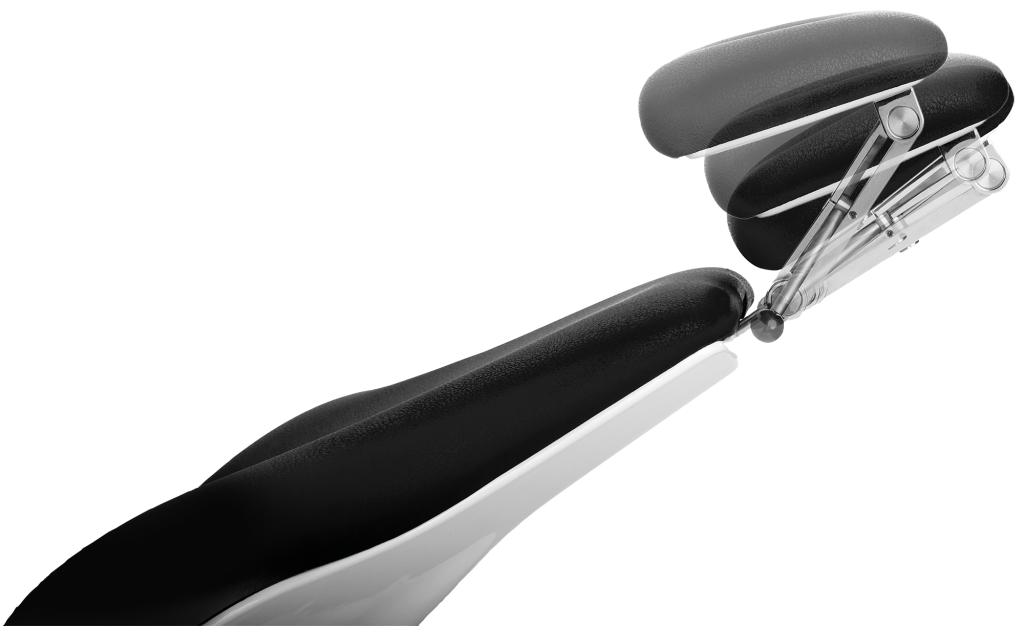

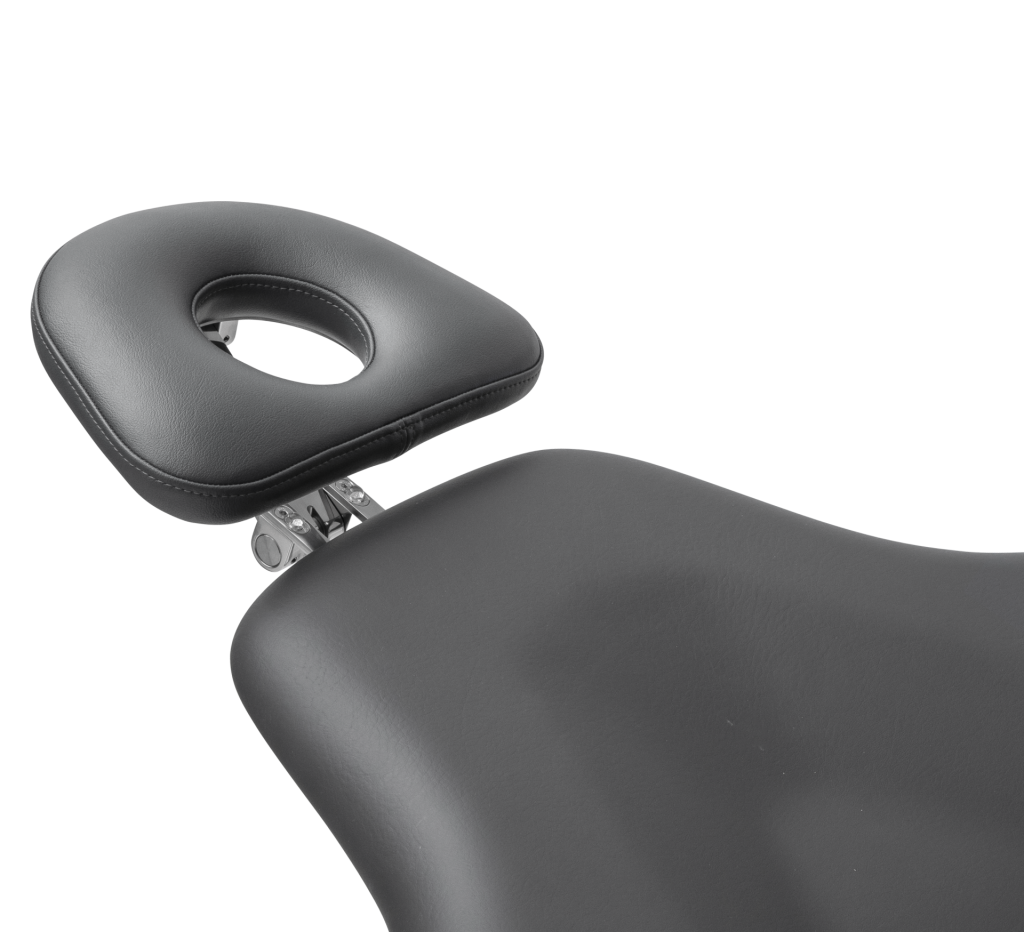

The double articulating neck rest improves patient positioning and is suitable for both adults and children.
The length and angle of the neck rest are adjustable to accommodate the patient. The height is adjustable to the level the patient finds comfortable.
Optional placement of up to 3 individual joysticks provides optimal freedom of movement

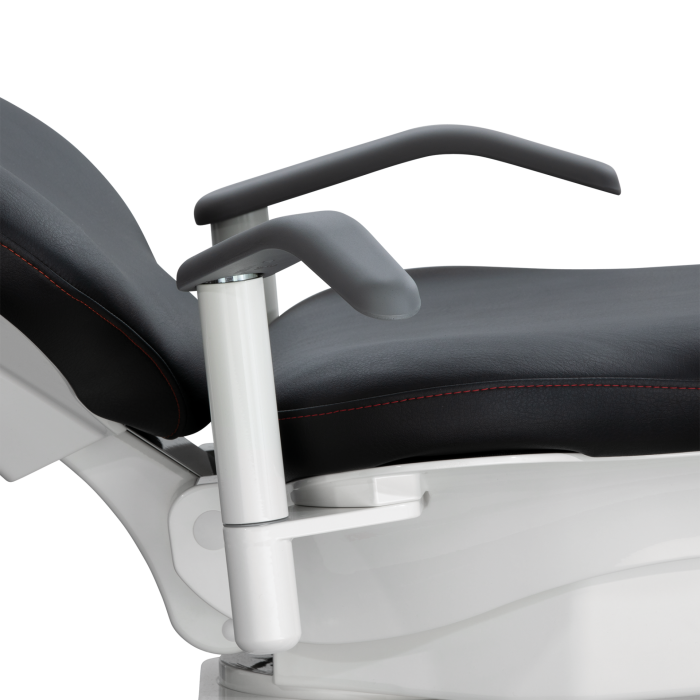

One or two armrests
The patient’s chair can be delivered with one or two armrests.

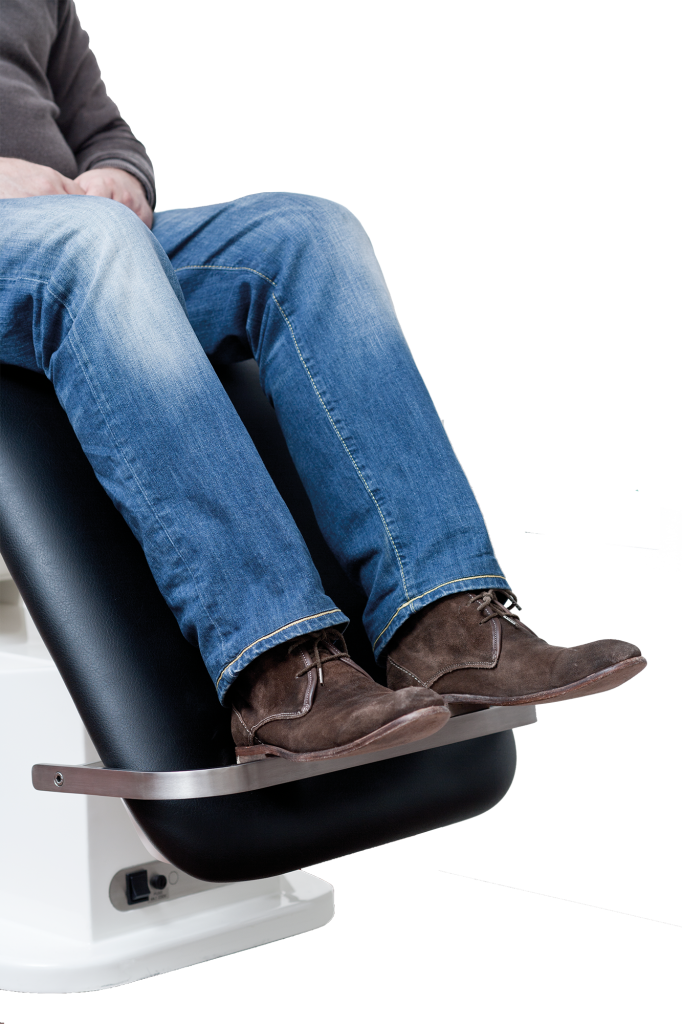

Retractable footrest ensures comfort for all sizes of patients.

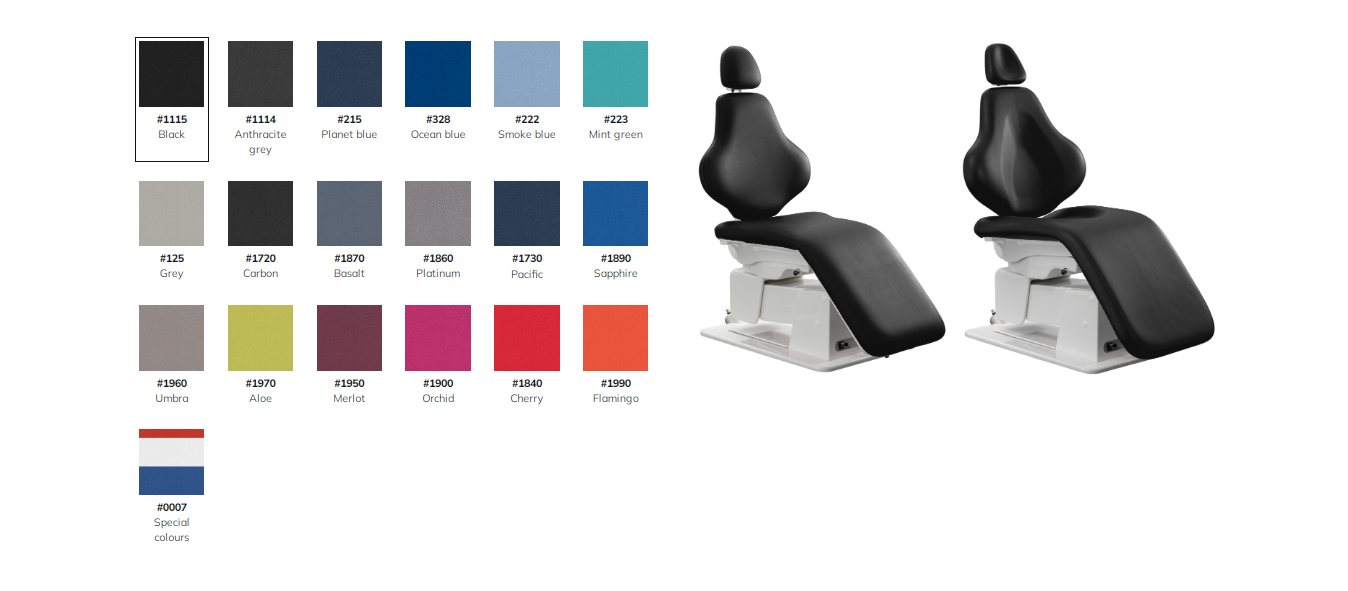

Upholstery colours
Choice of colours
The upholstery of the patient’s chair is available in 18 standard colours, however, it is possible to deliver the chair’s upholstery in special colours to match the colours of the interior of the clinic.
Contact your authorized Heka distributor for further information on possibilities and prices.
We think about the next generations
- Heka Dental contributes to minimizing our environmental impact by virtue of the long life of our treatment units, as the environmental impact is reduced by virtue of the lifetime of the products.
- We use aluminium, which has a life cycle that very few metals can match, and at the same time we use recyclable aluminium.
- Via suppliers, we continuously work to reduce the energy requirement in our production by finding better alternatives for transport, and especially in our development and design, we work with solutions so that the products can be reused to a greater extent.
We take responsibility – timely care for you
We always have a team of specialists ready to move out.
At Heka Dental and our dedicated partners , we know how important it is for your clinic that you have the highest uptime on your treatment units. That is why we never compromise with the choice of materials when we build your treatment unit, and we are demonstrably among the best on the market when it comes to longevity and operational reliability.
If a problem arises, we always make sure to have a partner network of technicians ready to go to your clinic, so we ensure that your treatment unit comes up again and creates value for your business. With local spare parts warehouses in Europe and overseas markets, we can always deliver quickly.
We take responsibility - ensuring the best care for you
We always have a team of specialists available to solve problems.
At Heka Dental and our dedicated partners , we know how important it is for your clinic that you have the highest uptime on your treatment units. That is why we never compromise with the choice of materials when we build your treatment unit, and we are demonstrably among the best on the market when it comes to longevity and operational reliability.
If a problem arises, we always make sure to have a partner network of technicians ready to go to your clinic, so we ensure that your treatment unit comes up again and creates value for your business. With local spare parts warehouses in Europe and overseas markets, we can always deliver quickly.

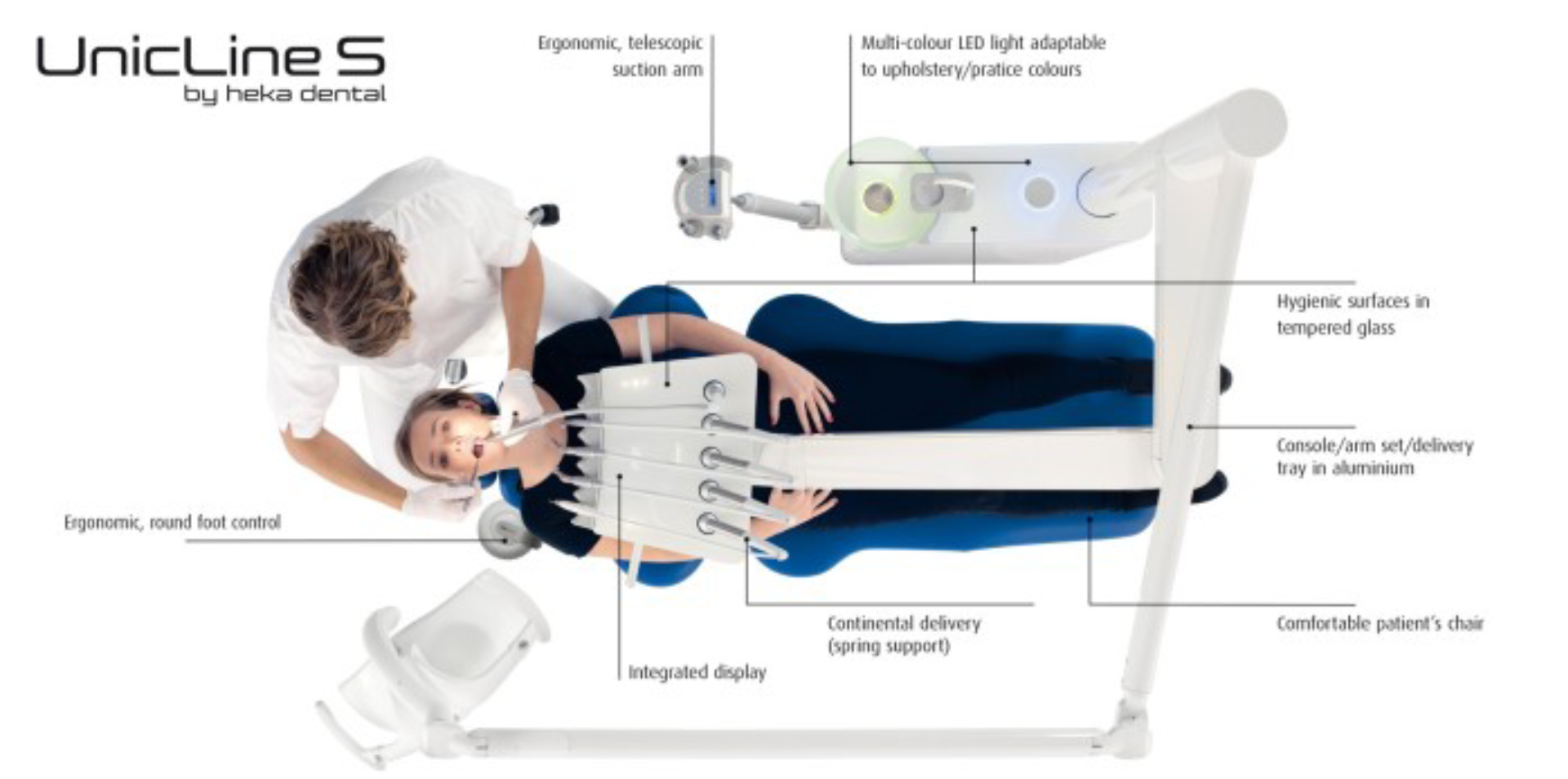

UnicLine S advantages
- Ergonomic products
- Modern Nordic design
- Aluminium and glass
- High quality
- Market leader in Scandinavia and Benelux, export to 45 countries
- Made in Denmark
- Unique design expression with the use of glass surfaces
- Clean Nordic lines that make UnicLine S seem timeless
- The first dental unit on the market that can be adapted to its environment, using LED multi-coloured light – even if the clinic is later changed
- Easy installation, especially if the dentist already has a UnicLine 5D
- Integrated displays, allow faster cleaning – especially when switching patients
- The integrated displays also provide a calm design expression
- Aluminium – does not yellow over time
- Aluminium – easy to clean
- Aluminium – gives a feeling and perception of quality and luxury
- Glass – easy to clean
- Glass – integration of displays
- Glass – makes the use of LED light possible
- Glass – makes UnicLine S feel like something you already know Benefits of UnicLine S ergonomics for the dentist
- Instrument whip arms with individually adjusted springs
- Delivery arm with needle bearings in all moving joints – provides smooth movement for many years
- Flat delivery tray table for optimized ergonomics
- Round foot control for ergonomic seating position
- The backrest on the patient seat is slim at the top so there is plenty of room for ergonomically optimal working position.
- Unique patented solution
- Lighting ergonomics on UnicLine S can reduce the strain of the neck and eyes considerably
- Suction arm, which is super ergonomic, because it’s continuously variable, thin and compact. Ensures that it is always possible to sit correctly
- Easy operation of cleaning functions
- Easy access to the display on the instrument tray – ensures easy access to, e.g. chair’s operation
- Assistant room’ free from electronics Benefits when working with dental assistant on UnicLine S
- The dentist decides how he/she wants to work
- Better integration of the dental assistant in the treatment situation
- Faster patient switch. The dentist can better maintain contact with the patient during the switch and still save time
- Better greeting of the patient
- Upholstery with good comfort for long and short treatments
- Pleasant rinse position
- Footrest bending inward
- Possibility of horizontal operating space

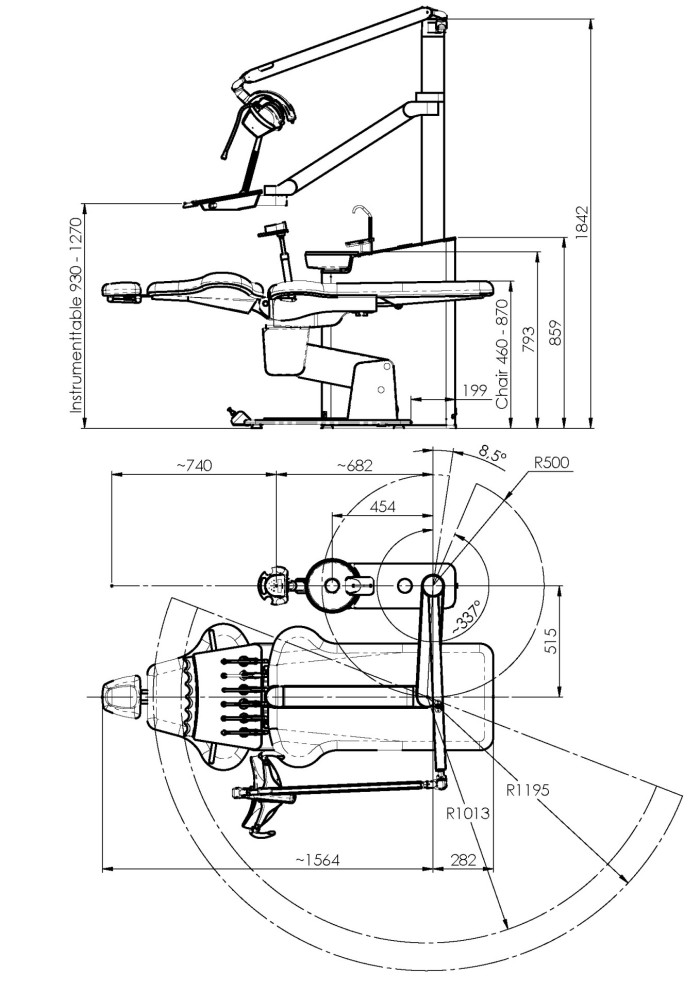

Specifications
- Quality product made from aluminium and glass
- Quality valves from Germany
- Lacquered surfaces in aluminium
- Surface on console and delivery tray in tempered glass with integrated touch buttons
- Instrument arm in cast aluminium
- Oversized double needle bearings in console, middle arm, and delivery tray
- Instrument arm with 337° rotation offers both right- and left-handed operation
- Instrument arm with double spring supported height adjustment
- Adjustable setting of joints and height adjustable instrument arm.
- Lighting ergonomics
- Individually balanced instruments
- Optional delivery tray for five or six instruments
- Hygienic, integrated multi-touch panel in the glass surface of the console and delivery tray
- Integrated display in delivery tray
- Hygienic, autoclavable instrument holders
- Removable, autoclavable handles on delivery tray
- Return air filter

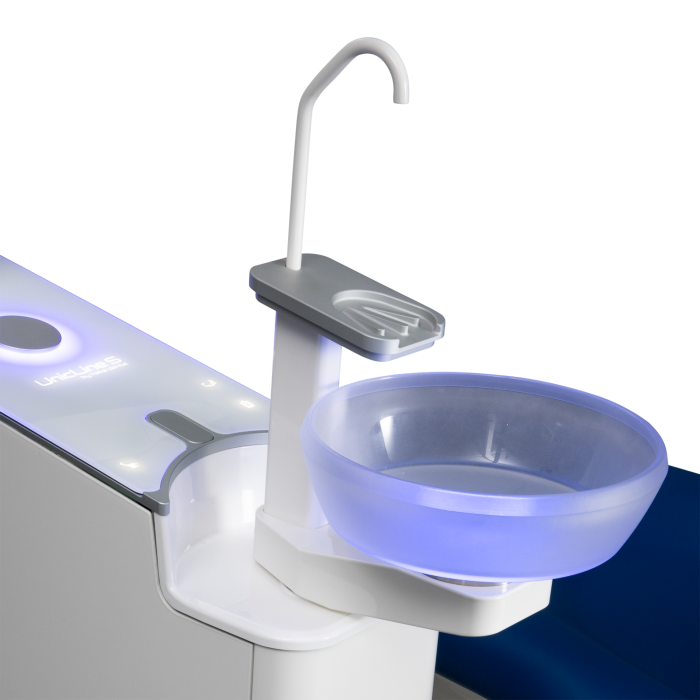

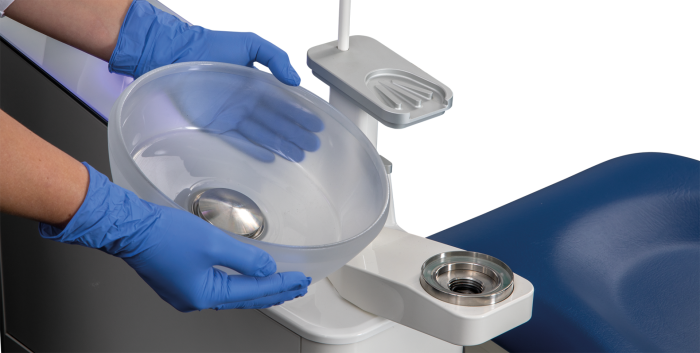

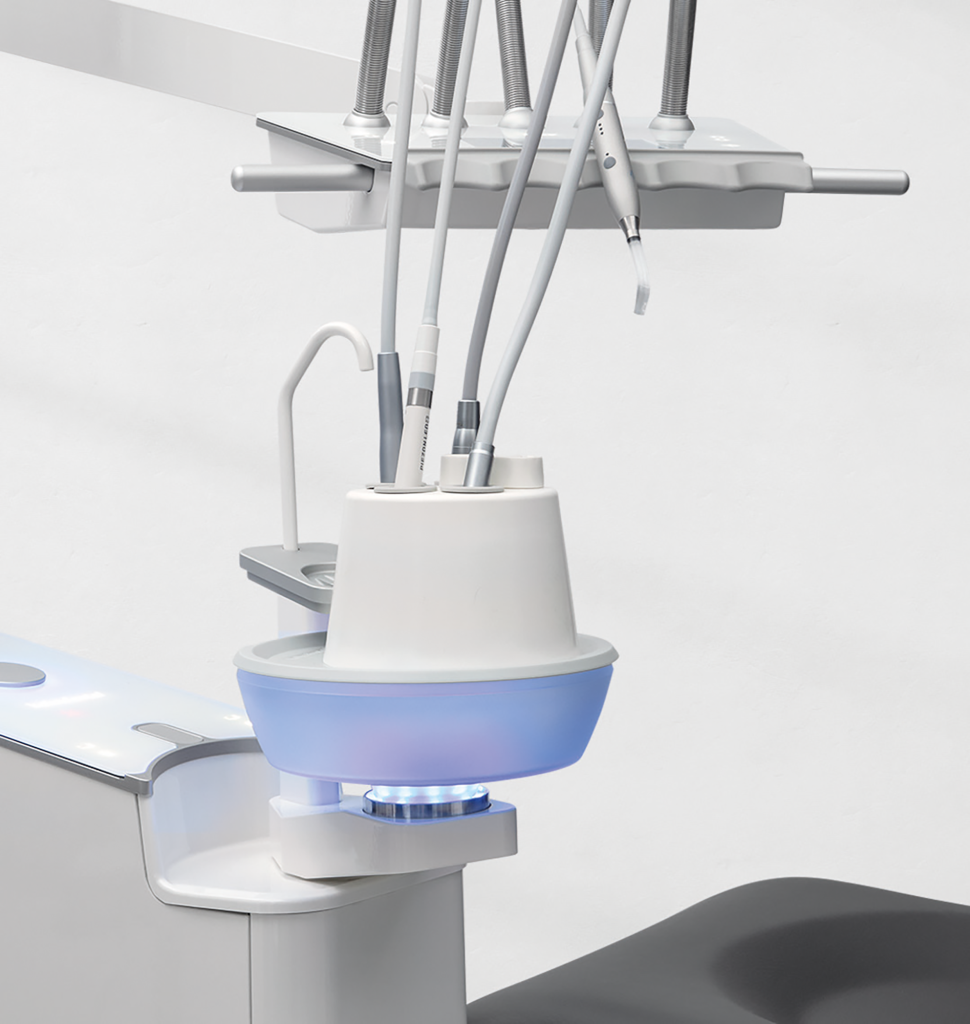

- Removable glass spittoon
- Selective suction (large and small)
- Multi-flexible telescopic suction holder
Other equipment and options
- Multiflex high speed, fibre optic outlet
- W&H Advanced Air, incl. Primea turbine with LED
- W&H Primea turbine (only with Adv. Air)
- Bien Air MX2 incl. Optima control 100-40.000 rpm/min. (up to 2 pcs.)
- Bien Air, MCX brushless, 1000- 40.000 rpm/min. (up to 3 pcs.)
- UNIC, 3:1
- Luzzani, 3:1 or 6:1
- Luzzani, 7:1 with/light
- Newtron (with/without LED)
- W&H with LED
- EMS ”No Pain” (with/without LED)
- NSK Varios (with/without LED)
- EMS Airflow: built-in version Curing light:
- UNIC (Bluedent Express)
- Starlight Sler (with button or foot control activation)
- Acteon MiniLED
- Sopro 617 or Soprocare, excl. software
- Dürr VistaCam iX HD
- Tray support in various lengths
- Optional double tray support
- Single or double tray
- Protection sheet for tray (autoclavable)
- 22” monitor mounted on lamp support with flexible arm
- iPad/tablet holder (on delivery tray)
- Water decontamination (with/ without air gap)
- Internal water bottle – 1 litre
- External water bottle – 2 litre
- Automatic instrument flush
- Sterile water pump
- Automatic suction hose cleaning system
- Dürr spittoon valve
- Metasys spittoon valve
- Dürr Combi Separator (amalgam separation)
- Metasys Amalgam separation
- Metasys separator (air/water)
- Integrated-, revolving- or no cuspidor
- Multi-colour LED in console and spittoon bowl
- Water heater for cup fill
- Water heater for cup fill and instruments
- Quick coupling for suction
- Quick coupling for water/air
- 230V/Schuko power socket
- X-ray support
- USB-socket
- Faro EVA LED operation lamp 50.000 Lux, 4000K, 5000K or 5700K, with Composave mode (11.000Lux/2700K), for Heka Design arm
- Faro EVA Cam LED operation lamp, specifications identical to std. EVA lamp, as well as with integrated HD-Camera, for Heka Design arm
- Faro EVA LED operation lamp, specifications identical to std. EVA lamp, as well as built-in THEIATECH
- Faro Maia LED operation lamp 35.000 Lux, 5000K with standard arm
- Faro Sidèrea LED room light
- X-Mind x-ray D/C: UNIC version
- UNIC 3:1
- Luzzani 3:1
- Curing light with button activation
- Optional mounting of assistant/ suction arm on chair
- Ergonomic round (wired or wireless)
- Round variable (wired or wireless)
- Universal variable (wired or wireless)
- Two electric motors
- Approved up to 180 kg.
- High lifts for standing treatment

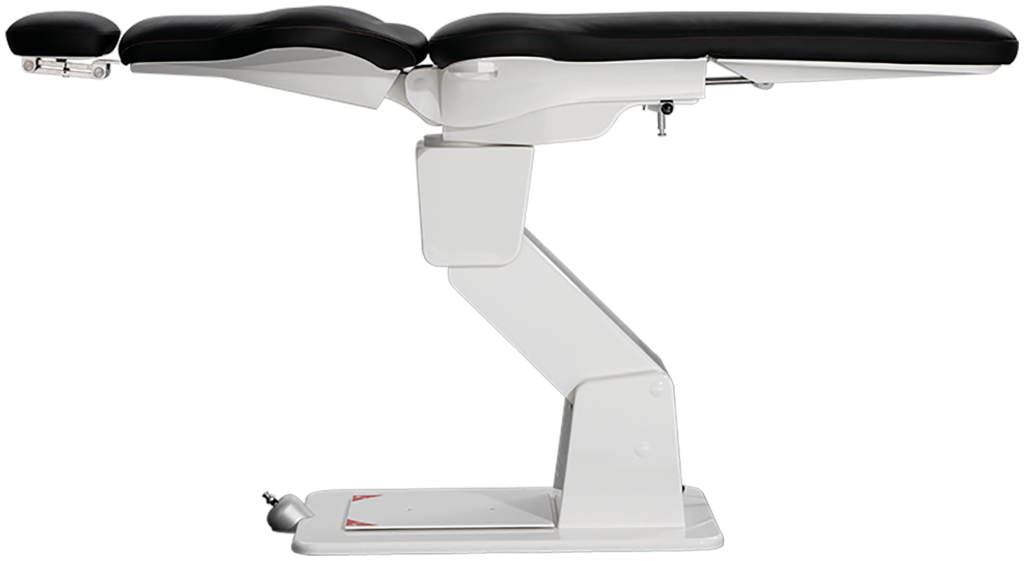

- Horizontal position available
- Double-articulated head rest
- One joystick (up to 3 joysticks possible)
- Four 4 programs or 3 programs and ”Last Position”
- Headrest with hole
- Armrest – right and/or left, revolving
- Footrest, foldable
- Hanger for foot control
- Comfort Shape Upholstery (standard)
- Comfort Memory Upholstery
This illustration is based on a UnicLine S with integrated cuspidor.
UnicLine S and some of its parts are design-protected; some UnicLine S parts are patent-protected.
Reviews from those who use the Heka S+ in their daily life
“It was like… if I may
compare, like an Apple cell
Thank you for your interest in UnicLine S
Request a quote
- Integrated LED touch screens in the elegant, hygienic surface of tempered glass
- The telescopic arm with the suction can be easily adjusted to work 180 degrees around the patient to avoid twisting the upper body when reaching for the suction
- UnicLine S is available with different models of intraoral cameras that can be connected to the clinic's PC and the image can be displayed on a 22” unit-mounted monitor
